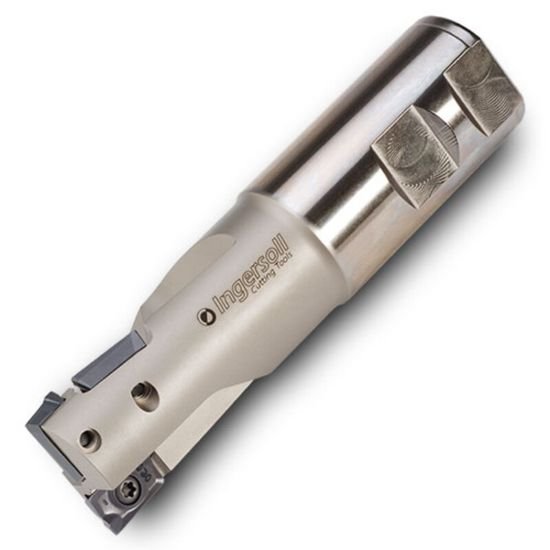

Picture of Ingersoll 12S1B-1502781R01 Milling Cutter 90.0°, Drill Mill 1.500 Weldon 1.2500 1 Flute Coolant 1.12 Max DOC 5.000 OAL

Ingersoll 12S1B-1502781R01 Milling Cutter 90.0°, Drill Mill 1.500 Weldon 1.2500 1 Flute Coolant 1.12 Max DOC 5.000 OAL

Part Number: ING3003839 ISO: 12S1B-1502781R01 ANSI:12S1B-1502781R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$523.60
SKU: 1008688

Description

INGERSOLL 3003839 Parallelogram 90.0°, Drill Mill, Plunge Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Plunge Mill, Drill Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 1
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 1.1200
Materials & Finish
Tool Material Steel
