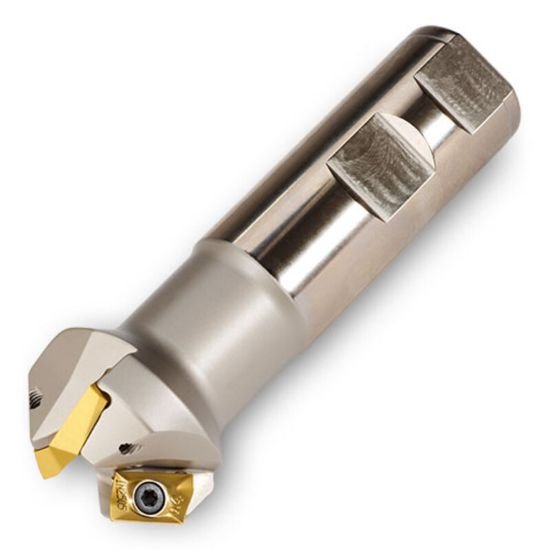

Picture of Ingersoll 12Q1R020044W5R00 Milling Cutter 15.0° 0.787 Cylindrical0.9843 3 Flute Coolant 0.114 Max DOC 3.937 OAL

Ingersoll 12Q1R020044W5R00 Milling Cutter 15.0° 0.787 Cylindrical0.9843 3 Flute Coolant 0.114 Max DOC 3.937 OAL

Part Number: ING3027428 ISO: 12Q1R020044W5R00 ANSI:12Q1R020044W5R00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009058
Vendor: Sussex Tool and Supply
$491.87

Description

INGERSOLL 3027428 Parallelogram 15.0°, Chamfer Mill End Mill Cylindrical 0.9843 Positive 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 3
Tool Dia 0.7870 19.99MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 15.0°
Performance & Capacity
Cut Dia Min 0.7870 19.99MM
Depth Of Cut Max 0.1140
Cut Dia Max 1.6570 42.09MM
Materials & Finish
Tool Material Steel
