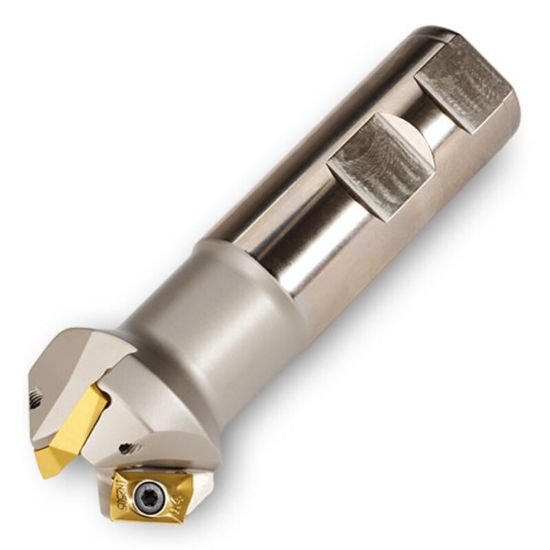

Picture of Ingersoll 12Q1R-0701780R01 Milling Cutter 15.0° 0.750 Cylindrical1.0000 3 Flute Coolant 0.115 Max DOC 4.000 OAL

Ingersoll 12Q1R-0701780R01 Milling Cutter 15.0° 0.750 Cylindrical1.0000 3 Flute Coolant 0.115 Max DOC 4.000 OAL

Part Number: ING2924197 ISO: 12Q1R-0701780R01 ANSI:12Q1R-0701780R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008631
Vendor: Sussex Tool and Supply
$424.67

Description

INGERSOLL 2924197 Parallelogram 15.0°, Chamfer Mill End Mill Cylindrical 1.0000 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 15.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1150
Cut Dia Max 1.6410 41.68MM
Materials & Finish
Tool Material Steel
