  • INGERSOLL 12P1R020044W5R00 Milling Cutter 30.0° 0.787 Cylindrical0.9843 3 Flute Yes Coolant 0.2323 Max DOC 3.937 OAL

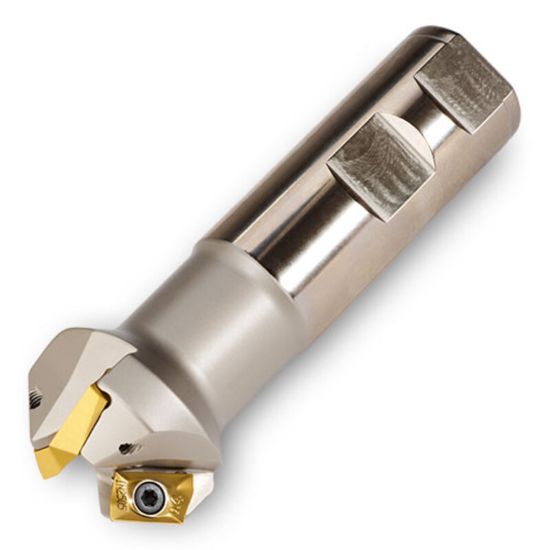

Picture of INGERSOLL 12P1R020044W5R00 Milling Cutter 30.0° 0.787 Cylindrical0.9843 3 Flute Yes Coolant 0.2323 Max DOC 3.937 OAL

INGERSOLL 12P1R020044W5R00 Milling Cutter 30.0° 0.787 Cylindrical0.9843 3 Flute Yes Coolant 0.2323 Max DOC 3.937 OAL

ANSI: 12P1R020044W5R00

ISO: 12P1R020044W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027427
Delivery date: 3-5 days
$464.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Sold by Pieces 1
Additional Key Information 1 30.0°, Chamfer Mill
Additional Key Information 3 30.0°
Insert/Tool Tool
Application Chamfering
Insert Type Positive
Additional Key Information 2 Milling Cutter
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 13
Depth Of Cut Max 0.2323
Cutter Dia 0.7870 19.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Machine Side Connection Type Cylindrical
Machine Side CYLINDRICAL0.9843
Flutes/Inserts 3
Cut Dia Max 1.5910 40.41MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cut Dia Min 0.7870 19.99MM
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
