  • INGERSOLL 12P1Q-0201584R01 Milling Cutter 30.0° 1.000 Weldon 0.7500 1 Flute Yes Coolant 0.22 Max DOC 3.500 OAL

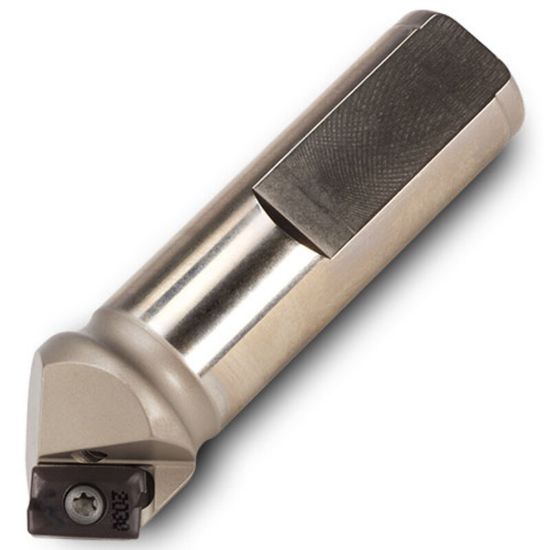

Picture of INGERSOLL 12P1Q-0201584R01 Milling Cutter 30.0° 1.000 Weldon 0.7500 1 Flute Yes Coolant 0.22 Max DOC 3.500 OAL

INGERSOLL 12P1Q-0201584R01 Milling Cutter 30.0° 1.000 Weldon 0.7500 1 Flute Yes Coolant 0.22 Max DOC 3.500 OAL

ANSI: 12P1Q-0201584R01

ISO: 12P1Q-0201584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3007711
Delivery date: 3-5 days
$264.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

GENERAL PURPOSE CHAFER TOOL USING TWO CORNER INSERT. LOTS OF GRADES AND EDGE PREPS AVAILABLE

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert Application Semi Finishing, Roughing
Additional Key Information 1 30.0°, Chamfer Mill
Additional Key Information 3 30.0°
Insert/Tool Tool
Application Chamfering
Shipping State Illinois
Package Size 1
Additional Key Information 2 Milling Cutter
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2200
Overall Len 3.5000 88.90MM
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Insert Size Ic 12
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Machine Side WELDON0.7500
Flutes/Inserts 1
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
