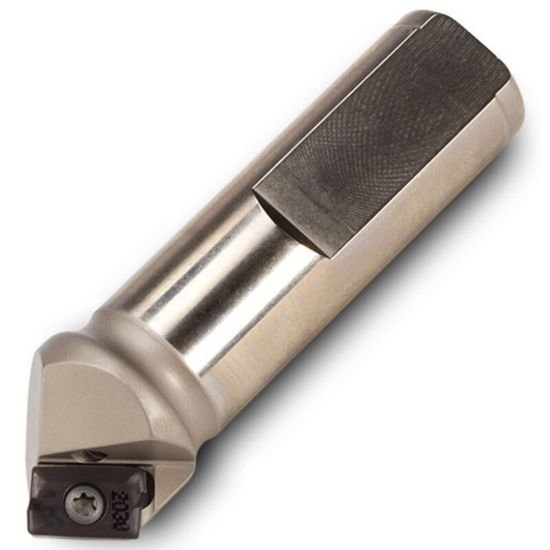

Picture of Ingersoll 12P1Q-0201584R01 Milling Cutter 30.0° 1.000 Weldon 0.7500 1 Flute Coolant 0.22 Max DOC 3.500 OAL

Ingersoll 12P1Q-0201584R01 Milling Cutter 30.0° 1.000 Weldon 0.7500 1 Flute Coolant 0.22 Max DOC 3.500 OAL

Part Number: ING3007711 ISO: 12P1Q-0201584R01 ANSI:12P1Q-0201584R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008716
Vendor: Sussex Tool and Supply
$278.13

Description

INGERSOLL 3007711 Parallelogram 30.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 1.0000 25.40MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 30.0°
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Depth Of Cut Max 0.2200
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
