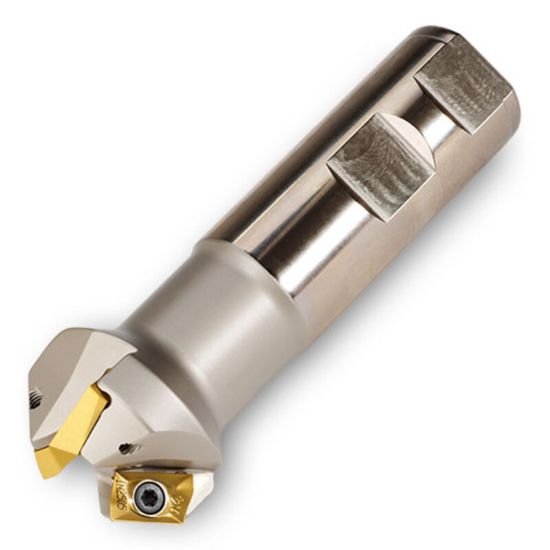

Picture of Ingersoll 12N1R-0701780R01 Milling Cutter 45.0° 0.750 Cylindrical1.0000 3 Flute Coolant 0.32 Max DOC 4.000 OAL

Ingersoll 12N1R-0701780R01 Milling Cutter 45.0° 0.750 Cylindrical1.0000 3 Flute Coolant 0.32 Max DOC 4.000 OAL

Part Number: ING2923912 ISO: 12N1R-0701780R01 ANSI:12N1R-0701780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008627
Vendor: Sussex Tool and Supply
$404.00
INGERSOLL 2923912 Parallelogram 45.0°, Chamfer Mill End Mill Cylindrical 1.0000 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 13
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3200
Cut Dia Max 1.4080 35.76MM
Cutting Edge Angle 45.0°
