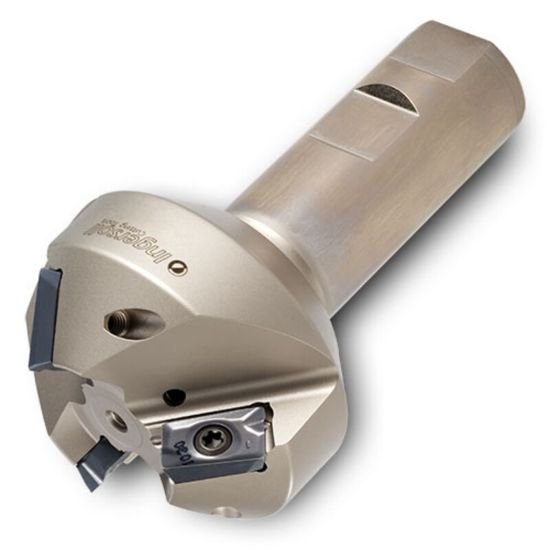

Picture of Ingersoll 12N1B-1201780R01 Milling Cutter 45.0° 1.250 Cylindrical1.0000 3 Flute Coolant 0.37 Max DOC 4.000 OAL

Ingersoll 12N1B-1201780R01 Milling Cutter 45.0° 1.250 Cylindrical1.0000 3 Flute Coolant 0.37 Max DOC 4.000 OAL

Part Number: ING3003764 ISO: 12N1B-1201780R01 ANSI:12N1B-1201780R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008687
Vendor: Sussex Tool and Supply
$514.27

Description

INGERSOLL 3003764 Parallelogram 45.0°, Chamfer Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3700
Cut Dia Max 2.0960 53.24MM
Materials & Finish
Tool Material Steel
