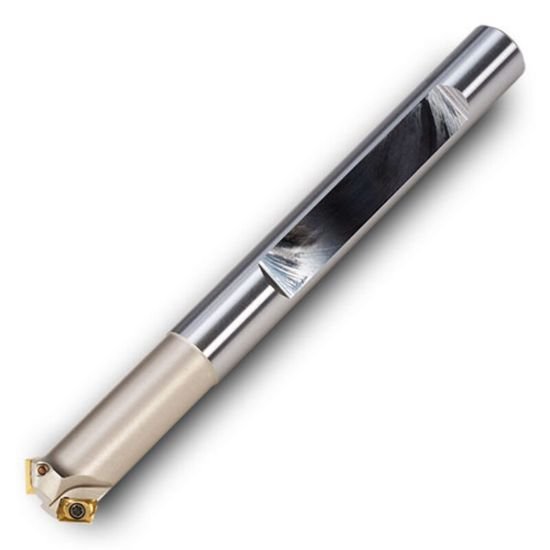

Picture of Ingersoll 12M1D-0303287R01 Milling Cutter 60.0° 0.520 Cylindrical0.5000 2 Flute 0.18 Max DOC 5.000 OAL

Ingersoll 12M1D-0303287R01 Milling Cutter 60.0° 0.520 Cylindrical0.5000 2 Flute 0.18 Max DOC 5.000 OAL

Part Number: ING3018991 ISO: 12M1D-0303287R01 ANSI:12M1D-0303287R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008886
Vendor: Sussex Tool and Supply
$228.67

Description

INGERSOLL 3018991 Parallelogram 60.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.5200 13.21MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5200 13.21MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 60.0°
Performance & Capacity
Cut Dia Min 0.3120 7.92MM
Depth Of Cut Max 0.1800
Cut Dia Max 0.5200 13.21MM
Materials & Finish
Tool Material Steel
