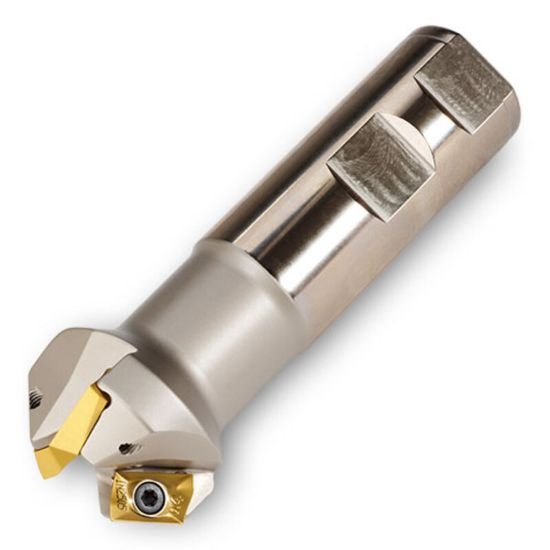

Picture of Ingersoll 12L1R-0801780R01 Milling Cutter 75.0° 0.875 Cylindrical1.0000 3 Flute Coolant 0.46 Max DOC 4.000 OAL

Ingersoll 12L1R-0801780R01 Milling Cutter 75.0° 0.875 Cylindrical1.0000 3 Flute Coolant 0.46 Max DOC 4.000 OAL

Part Number: ING2924170 ISO: 12L1R-0801780R01 ANSI:12L1R-0801780R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008630
Vendor: Sussex Tool and Supply
$431.20

Description

INGERSOLL 2924170 Parallelogram 75.0°, Face Mill End Mill Cylindrical 1.0000 Positive 0.8750 22.23MM - 7/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.8750 22.23MM - 7/8
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 0.8750 22.23MM - 7/8
Depth Of Cut Max 0.4600
Cut Dia Max 1.1230 28.52MM
Materials & Finish
Tool Material Steel
