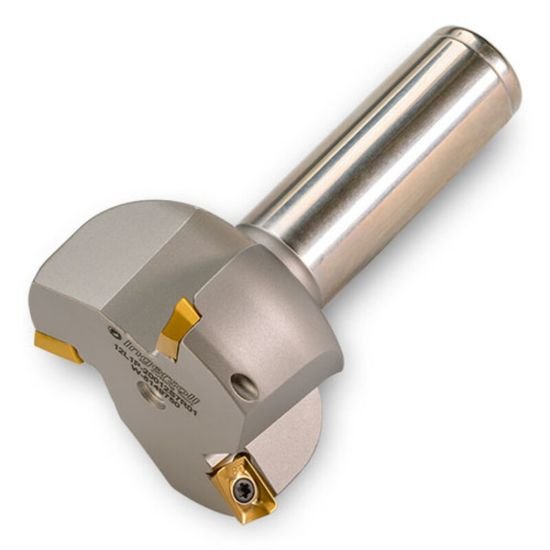

Picture of Ingersoll 12L1P-20012S7R01 Milling Cutter 75.0° 2.000 Weldon 0.7500 3 Flute Coolant 0.12 Max DOC 3.250 OAL

Ingersoll 12L1P-20012S7R01 Milling Cutter 75.0° 2.000 Weldon 0.7500 3 Flute Coolant 0.12 Max DOC 3.250 OAL

Part Number: ING2923884 ISO: 12L1P-20012S7R01 ANSI:12L1P-20012S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008625
Vendor: Sussex Tool and Supply
$496.00
INGERSOLL 2923884 Parallelogram 70.0°, Face Mill End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.2500 82.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 9
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.1200
Cut Dia Max 2.1300 54.10MM
Cutting Edge Angle 75.0°
