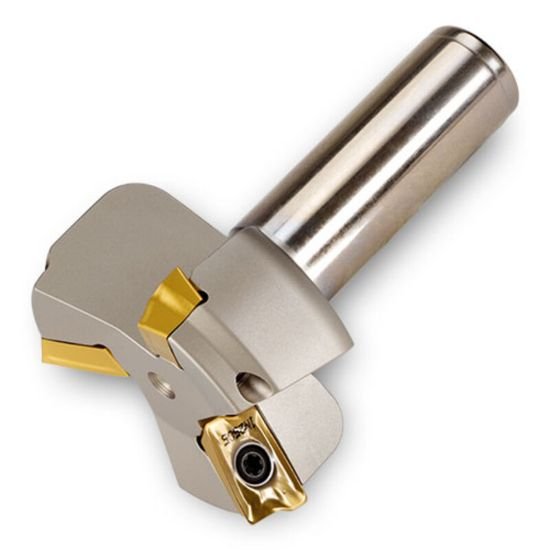

Picture of Ingersoll 12L1G-20012S7R01 Milling Cutter 75.0° 2.000 Weldon 0.7500 3 Flute Coolant 0.15 Max DOC 3.250 OAL

Ingersoll 12L1G-20012S7R01 Milling Cutter 75.0° 2.000 Weldon 0.7500 3 Flute Coolant 0.15 Max DOC 3.250 OAL

Part Number: ING2923833 ISO: 12L1G-20012S7R01 ANSI:12L1G-20012S7R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$556.27
SKU: 1008624

Description

INGERSOLL 2923833 Parallelogram 75.0°, Face Mill End Mill Weldon 0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 2.0000 50.80MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.1500
Cut Dia Max 2.3000 58.42MM
Materials & Finish
Tool Material Steel
