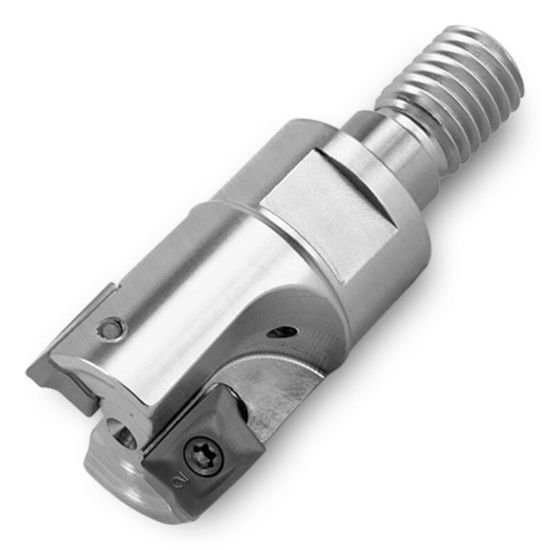

Picture of Ingersoll 12J1X-15017X8R01 Milling Cutter 90.0° 1.500 ScrewM16 5 Flute Coolant 0.49 Max DOC

Ingersoll 12J1X-15017X8R01 Milling Cutter 90.0° 1.500 ScrewM16 5 Flute Coolant 0.49 Max DOC

Part Number: ING3024813 ISO: 12J1X-15017X8R01 ANSI:12J1X-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008966
Vendor: Sussex Tool and Supply
$563.00
INGERSOLL 3024813 Parallelogram 90.0°, End Mill Thread On SCREWM16 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M16
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.4900
Cutting Edge Angle 90.0°
Max Ramp Angle 2.00°
