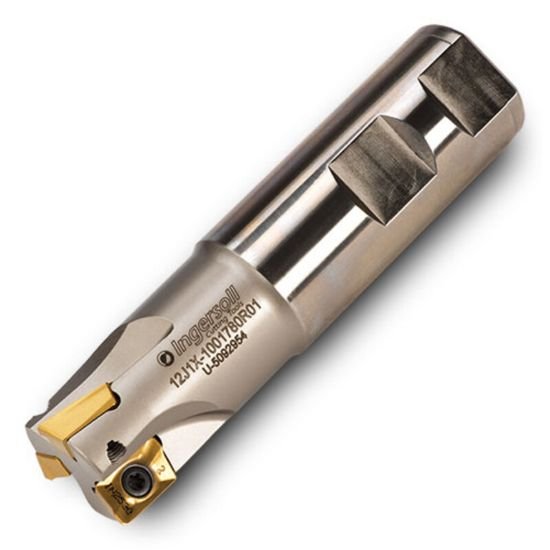

Picture of Ingersoll 12J1X-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical1.0000 4 Flute Coolant 0.49 Max DOC 4.000 OAL

Ingersoll 12J1X-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical1.0000 4 Flute Coolant 0.49 Max DOC 4.000 OAL

Part Number: ING3024886 ISO: 12J1X-1201780R01 ANSI:12J1X-1201780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008979
Vendor: Sussex Tool and Supply
$403.00
INGERSOLL 3024886 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4900
Cutting Edge Angle 90.0°
Max Ramp Angle 3.50°
