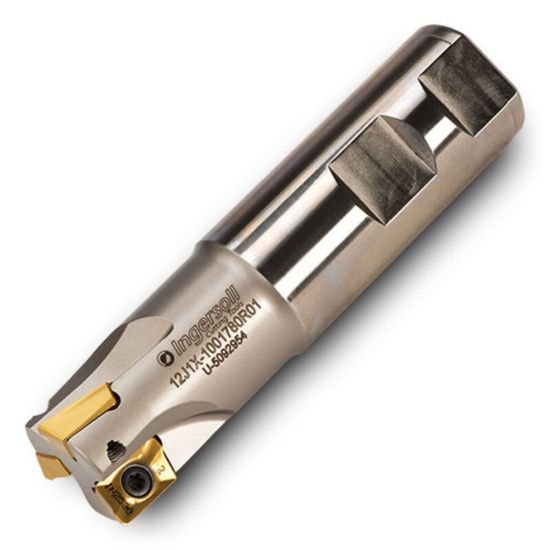

Picture of Ingersoll 12J1X-0701184R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.49 Max DOC 3.250 OAL

Ingersoll 12J1X-0701184R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.49 Max DOC 3.250 OAL

Part Number: ING3024801 ISO: 12J1X-0701184R01 ANSI:12J1X-0701184R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008954
Vendor: Sussex Tool and Supply
$304.50
INGERSOLL 3024801 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.2500 82.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.4900
Cutting Edge Angle 90.0°
Max Ramp Angle 7.00°
