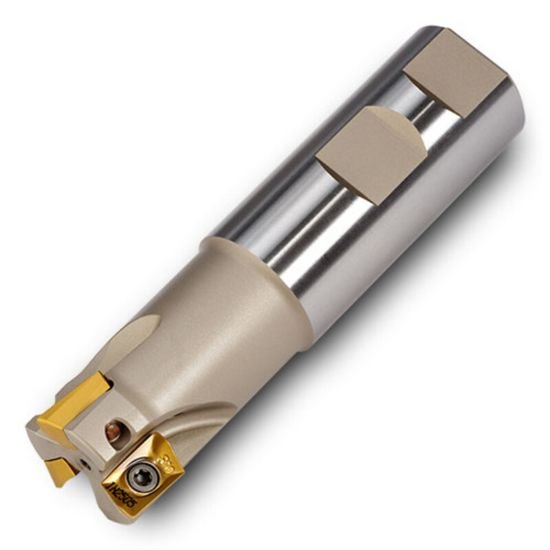

Picture of Ingersoll 12J1R032038W6R00 Milling Cutter 90.0° 1.260 Cylindrical1.2598 4 Flute Coolant 0.4724 Max DOC 3.937 OAL

Ingersoll 12J1R032038W6R00 Milling Cutter 90.0° 1.260 Cylindrical1.2598 4 Flute Coolant 0.4724 Max DOC 3.937 OAL

Part Number: ING3074942 ISO: 12J1R032038W6R00 ANSI:12J1R032038W6R00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009564
Vendor: Sussex Tool and Supply
$539.47

Description

INGERSOLL 3074942 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2598 Positive 1.2600 32.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 4
Tool Dia 1.2598 32.00MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.2600 32.00MM
Depth Of Cut Max 0.4724
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
