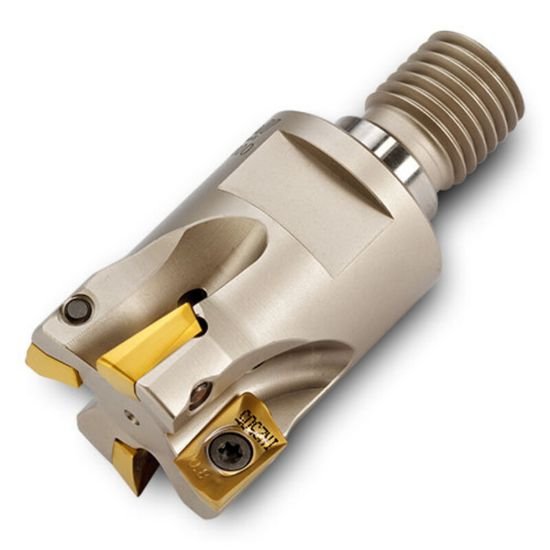

Picture of Ingersoll 12J1R020035X6R00 Milling Cutter 90.0° 0.787 ScrewM10 2 Flute Coolant 0.4724 Max DOC

Ingersoll 12J1R020035X6R00 Milling Cutter 90.0° 0.787 ScrewM10 2 Flute Coolant 0.4724 Max DOC

Part Number: ING3074943 ISO: 12J1R020035X6R00 ANSI:12J1R020035X6R00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009565
Vendor: Sussex Tool and Supply
$394.80

Description

INGERSOLL 3074943 Parallelogram 90.0°, End Mill Thread On SCREWM10 Positive 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.7870 19.99MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7870 19.99MM
Depth Of Cut Max 0.4724
Max Ramp Angle 7.00°
Materials & Finish
Tool Material Steel
