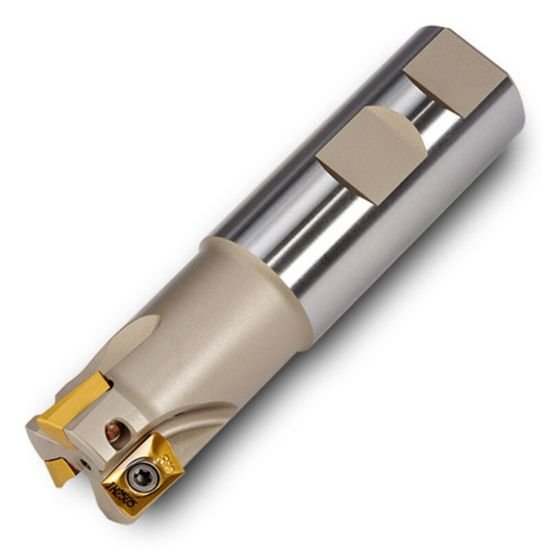

Picture of Ingersoll 12J1R-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 3 Flute Coolant 0.47 Max DOC 6.000 OAL

Ingersoll 12J1R-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 3 Flute Coolant 0.47 Max DOC 6.000 OAL

Part Number: ING3082449 ISO: 12J1R-1003780R01 ANSI:12J1R-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009590
Vendor: Sussex Tool and Supply
$469.00
INGERSOLL 3082449 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 13
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.4700
Cutting Edge Angle 90.0°
Max Ramp Angle 7.90°
