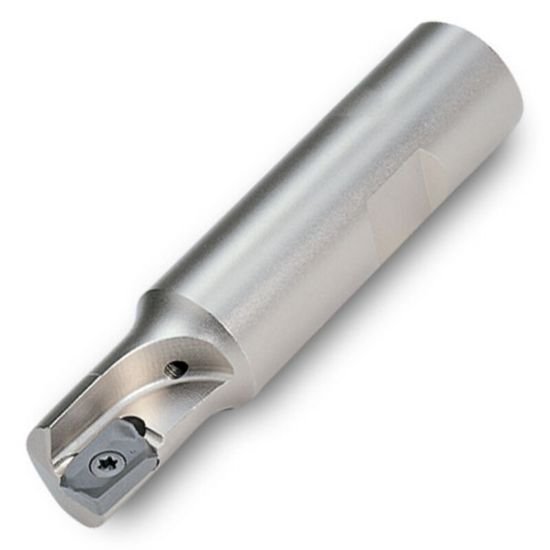

Picture of Ingersoll 12J1Q-0702280R01 Milling Cutter 90.0° 0.750 Cylindrical1.0000 2 Flute Coolant 0.47 Max DOC 8.000 OAL

Ingersoll 12J1Q-0702280R01 Milling Cutter 90.0° 0.750 Cylindrical1.0000 2 Flute Coolant 0.47 Max DOC 8.000 OAL

Part Number: ING3006330 ISO: 12J1Q-0702280R01 ANSI:12J1Q-0702280R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1008711

Description

INGERSOLL 3006330 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.4700
Max Ramp Angle 4.20°
Materials & Finish
Tool Material Steel
