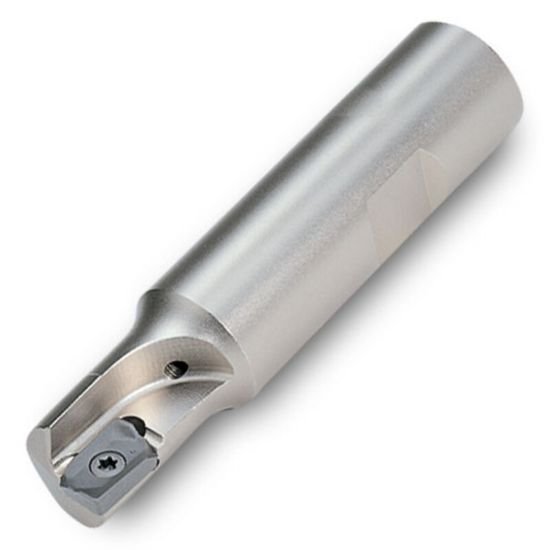

Picture of Ingersoll 12J1Q-0601584R01 Milling Cutter 90.0° 0.625 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

Ingersoll 12J1Q-0601584R01 Milling Cutter 90.0° 0.625 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.500 OAL

Part Number: ING3001320 ISO: 12J1Q-0601584R01 ANSI:12J1Q-0601584R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008648
Vendor: Sussex Tool and Supply
$261.00
INGERSOLL 3001320 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.5000 88.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.4700
Cutting Edge Angle 90.0°
Max Ramp Angle 3.20°
