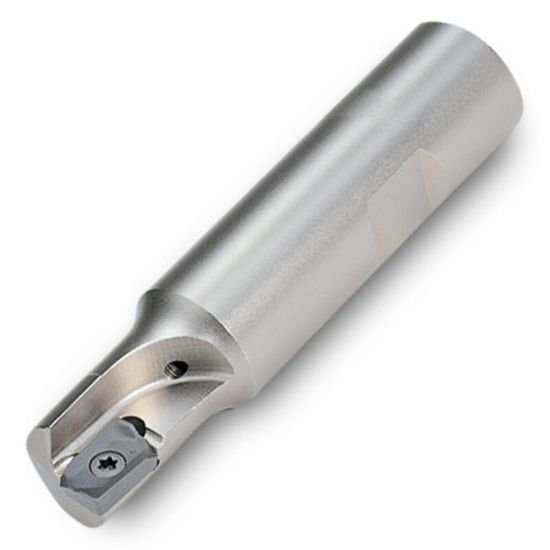

Picture of Ingersoll 12J1Q-0501284R01 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.250 OAL

Ingersoll 12J1Q-0501284R01 Milling Cutter 90.0° 0.500 Weldon 0.7500 1 Flute Coolant 0.47 Max DOC 3.250 OAL

Part Number: ING3002875 ISO: 12J1Q-0501284R01 ANSI:12J1Q-0501284R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$274.40
SKU: 1008672

Description

INGERSOLL 3002875 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.4700
Max Ramp Angle 3.20°
Materials & Finish
Tool Material Steel
