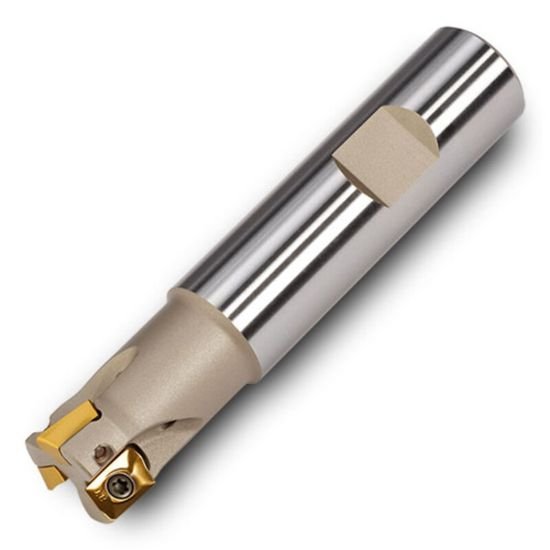

Picture of Ingersoll 12J1P025085W5R01 Milling Cutter 90.0° 0.984 Cylindrical0.9843 4 Flute Coolant 0.3543 Max DOC 5.708 OAL

Ingersoll 12J1P025085W5R01 Milling Cutter 90.0° 0.984 Cylindrical0.9843 4 Flute Coolant 0.3543 Max DOC 5.708 OAL

Part Number: ING3057605 ISO: 12J1P025085W5R01 ANSI:12J1P025085W5R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009538
Vendor: Sussex Tool and Supply
$556.27

Description

INGERSOLL 3057605 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.9843 Positive 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 5.7087 145.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Tool Dia 0.9840 24.99MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.9840 24.99MM
Depth Of Cut Max 0.3543
Max Ramp Angle 4.40°
Materials & Finish
Tool Material Steel
