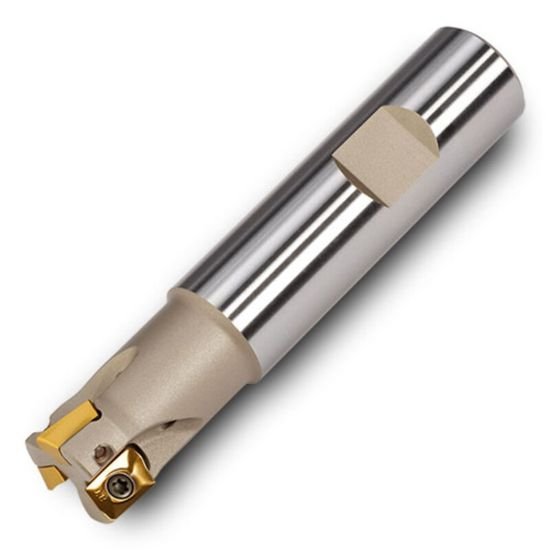

Picture of Ingersoll 12J1P016026W3R00 Milling Cutter 90.0° 0.630 Cylindrical0.6299 2 Flute Coolant 0.3543 Max DOC 3.346 OAL

Ingersoll 12J1P016026W3R00 Milling Cutter 90.0° 0.630 Cylindrical0.6299 2 Flute Coolant 0.3543 Max DOC 3.346 OAL

Part Number: ING3027488 ISO: 12J1P016026W3R00 ANSI:12J1P016026W3R00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009062
Vendor: Sussex Tool and Supply
$417.20

Description

INGERSOLL 3027488 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.6299 Positive 0.6300 16.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.3465 85.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6300 16.00MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6300 16.00MM
Depth Of Cut Max 0.3543
Max Ramp Angle 10.00°
Materials & Finish
Tool Material Steel
