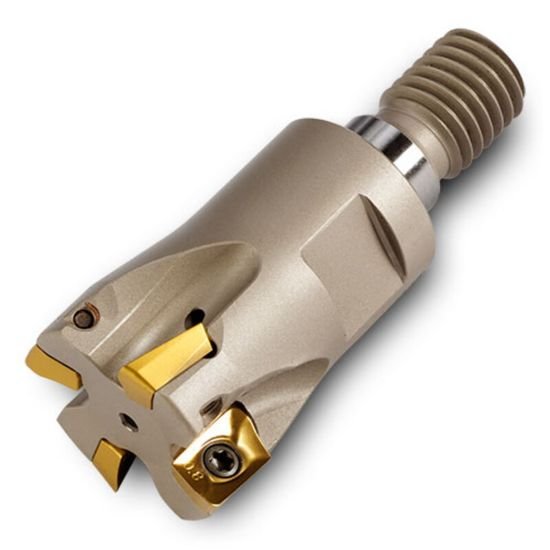

Picture of Ingersoll 12J1P015030X5R00 Milling Cutter 90.0° 0.984 ScrewM08 2 Flute Coolant 0.3543 Max DOC

Ingersoll 12J1P015030X5R00 Milling Cutter 90.0° 0.984 ScrewM08 2 Flute Coolant 0.3543 Max DOC

Part Number: ING3027501 ISO: 12J1P015030X5R00 ANSI:12J1P015030X5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009068
Vendor: Sussex Tool and Supply
$391.13
INGERSOLL 3027501 Parallelogram 90.0°, End Mill Thread On SCREWM08 Positive 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M08
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.9840 24.99MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 9
Cut Dia Min 0.5910 15.01MM
Depth Of Cut Max 0.3543
Cut Dia Max 0.9840 24.99MM
Cutting Edge Angle 90.0°
Max Ramp Angle 12.00°
