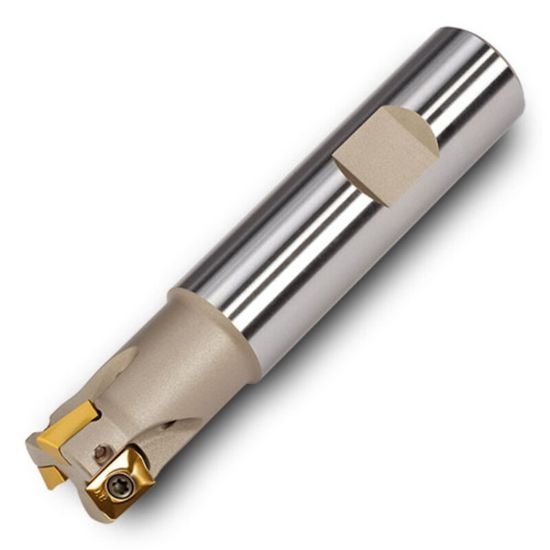

Picture of Ingersoll 12J1P-1501780R01 Milling Cutter 90.0° 1.500 Cylindrical1.0000 6 Flute Coolant 0.35 Max DOC 4.000 OAL

Ingersoll 12J1P-1501780R01 Milling Cutter 90.0° 1.500 Cylindrical1.0000 6 Flute Coolant 0.35 Max DOC 4.000 OAL

Part Number: ING3028206 ISO: 12J1P-1501780R01 ANSI:12J1P-1501780R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009120
Vendor: Sussex Tool and Supply
$526.40

Description

INGERSOLL 3028206 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3500
Max Ramp Angle 2.40°
Materials & Finish
Tool Material Steel
