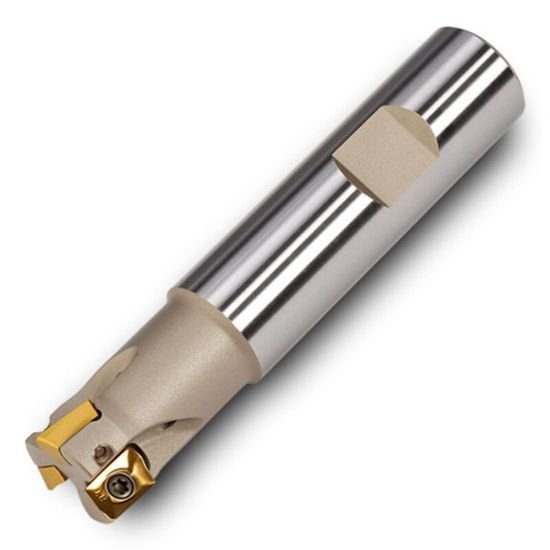

Picture of Ingersoll 12J1P-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

Ingersoll 12J1P-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

Part Number: ING3028203 ISO: 12J1P-1001784R01 ANSI:12J1P-1001784R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009117
Vendor: Sussex Tool and Supply
$405.07

Description

INGERSOLL 3028203 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 9
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3500
Max Ramp Angle 4.40°
Materials & Finish
Tool Material Steel
