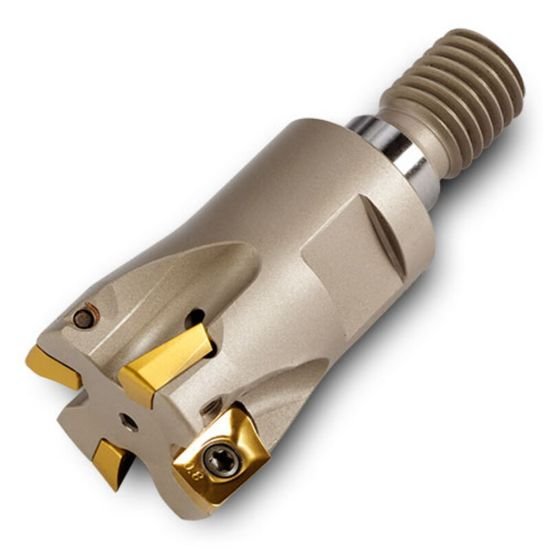

Picture of Ingersoll 12J1P-10015X7R01 Milling Cutter 90.0° 1.000 ScrewM12 4 Flute Coolant

Ingersoll 12J1P-10015X7R01 Milling Cutter 90.0° 1.000 ScrewM12 4 Flute Coolant

Part Number: ING3028209 ISO: 12J1P-10015X7R01 ANSI:12J1P-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009123
Vendor: Sussex Tool and Supply
$405.00
INGERSOLL 3028209 Parallelogram 90.0°, End Mill Thread On SCREWM12 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M12
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 9
Cut Dia Min 1.0000 25.40MM
Cutting Edge Angle 90.0°
Max Ramp Angle 4.40°
