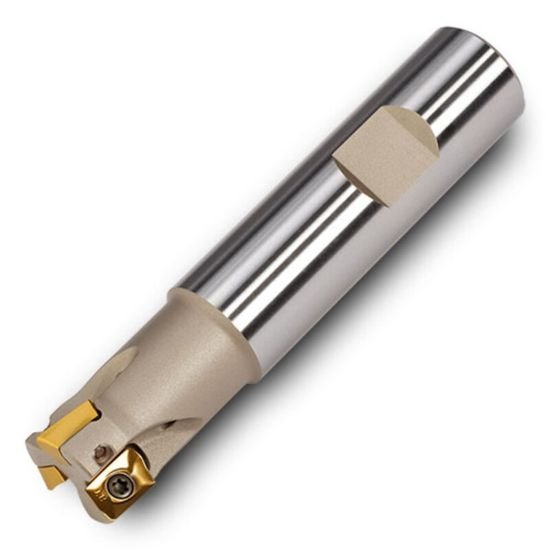

Picture of Ingersoll 12J1P-0501379R01 Milling Cutter 90.0° 0.500 Cylindrical0.6250 1 Flute Coolant 0.35 Max DOC 3.250 OAL

Ingersoll 12J1P-0501379R01 Milling Cutter 90.0° 0.500 Cylindrical0.6250 1 Flute Coolant 0.35 Max DOC 3.250 OAL

Part Number: ING3028196 ISO: 12J1P-0501379R01 ANSI:12J1P-0501379R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009110
Vendor: Sussex Tool and Supply
$280.88
INGERSOLL 3028196 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.6250 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.2500 82.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 9
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.3500
Cutting Edge Angle 90.0°
Max Ramp Angle 1.50°
