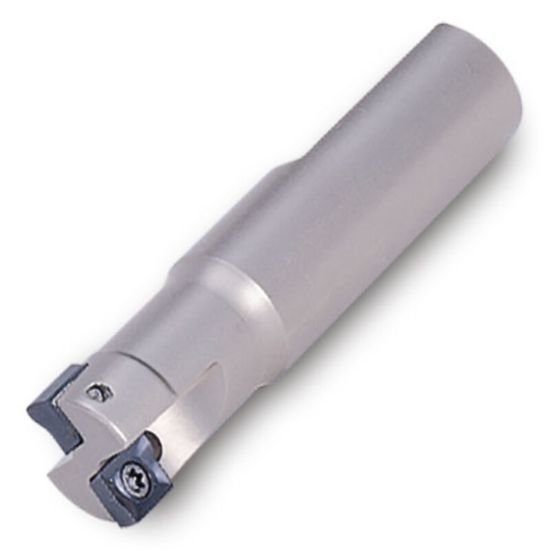

Picture of Ingersoll 12J1M-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 3 Flute 0.3 Max DOC 3.250 OAL

Ingersoll 12J1M-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 3 Flute 0.3 Max DOC 3.250 OAL

Part Number: ING3003949 ISO: 12J1M-0701284R01 ANSI:12J1M-0701284R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$367.73
SKU: 1008693

Description

INGERSOLL 3003949 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 8
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3000
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
