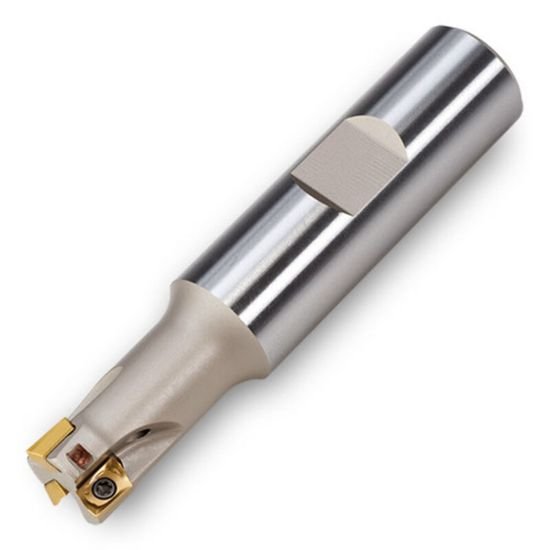

Picture of Ingersoll 12J1D-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 7 Flute 0.22 Max DOC 4.000 OAL

Ingersoll 12J1D-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical1.0000 7 Flute 0.22 Max DOC 4.000 OAL

Part Number: ING3018973 ISO: 12J1D-1001780R01 ANSI:12J1D-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008871
Vendor: Sussex Tool and Supply
$514.00
INGERSOLL 3018973 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 7
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2200
Cutting Edge Angle 90.0°
Max Ramp Angle 1.90°
