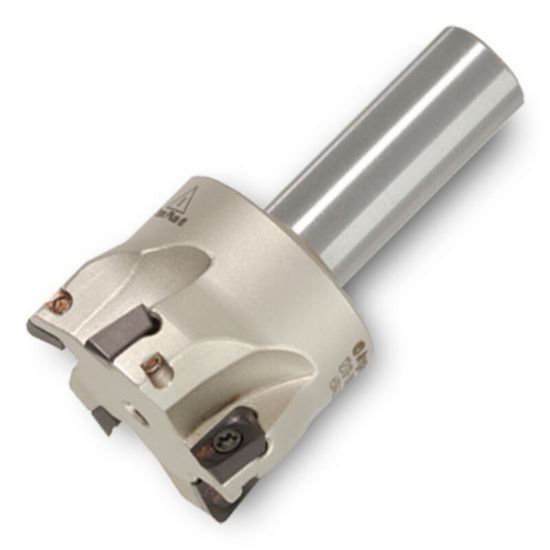

Picture of Ingersoll 12J1D-10007R8R01 Milling Cutter 90.0° 1.000 Cylindrical0.3750 5 Flute 0.22 Max DOC 1.750 OAL

Ingersoll 12J1D-10007R8R01 Milling Cutter 90.0° 1.000 Cylindrical0.3750 5 Flute 0.22 Max DOC 1.750 OAL

Part Number: ING3040877 ISO: 12J1D-10007R8R01 ANSI:12J1D-10007R8R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009519
Vendor: Sussex Tool and Supply
$518.93

Description

INGERSOLL 3040877 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.3750 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Inter/Extern External
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.2200
Max Ramp Angle 1.90°
Materials & Finish
Tool Material Steel
