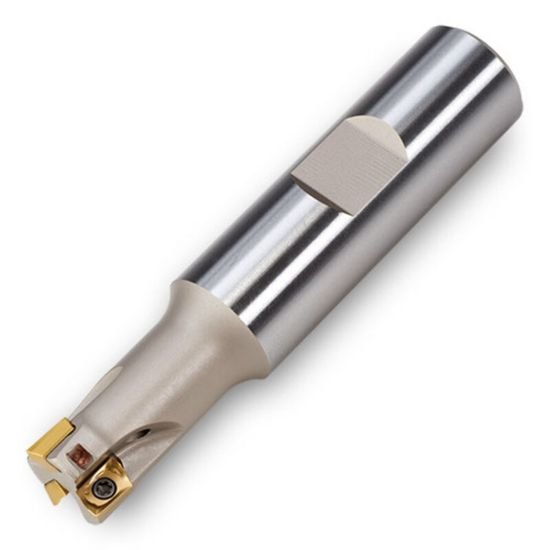

Picture of Ingersoll 12J1D-0701684R02 Milling Cutter 90.0° 0.720 Weldon 0.7500 4 Flute 0.22 Max DOC 3.750 OAL

Ingersoll 12J1D-0701684R02 Milling Cutter 90.0° 0.720 Weldon 0.7500 4 Flute 0.22 Max DOC 3.750 OAL

Part Number: ING3018967 ISO: 12J1D-0701684R02 ANSI:12J1D-0701684R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008867
Vendor: Sussex Tool and Supply
$416.00
INGERSOLL 3018967 Parallelogram 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7200 18.29MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.7500 95.25MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7200 18.29MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 0.7200 18.29MM
Depth Of Cut Max 0.2200
Cutting Edge Angle 90.0°
Max Ramp Angle 2.60°
