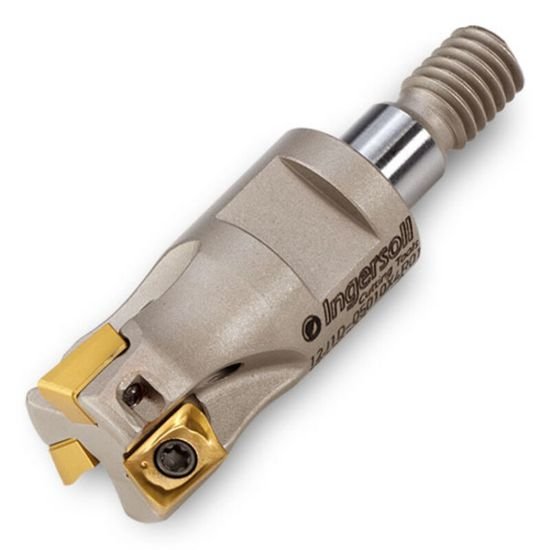

Picture of Ingersoll 12J1D-07015X6R01 Milling Cutter 90.0° 0.750 ScrewM10 5 Flute 0.22 Max DOC

Ingersoll 12J1D-07015X6R01 Milling Cutter 90.0° 0.750 ScrewM10 5 Flute 0.22 Max DOC

Part Number: ING3018982 ISO: 12J1D-07015X6R01 ANSI:12J1D-07015X6R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$351.87
SKU: 1008878

Description

INGERSOLL 3018982 Parallelogram 90.0°, End Mill Thread On SCREWM10 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2200
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
