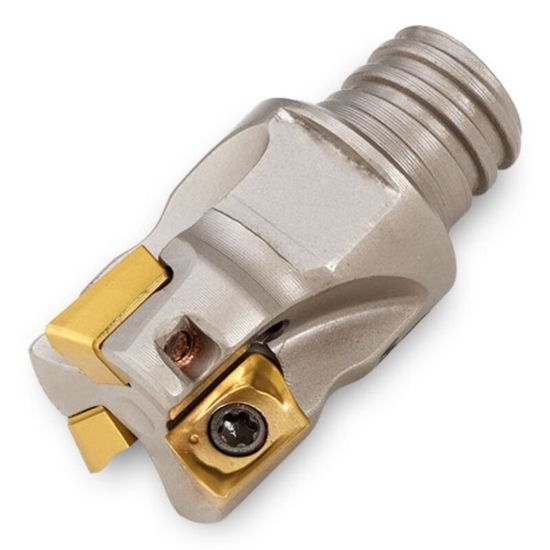

Picture of Ingersoll 12J1D-07010TSR02 Milling Cutter 90.0° 0.750 T12 3 Flute Coolant 0.22 Max DOC

Ingersoll 12J1D-07010TSR02 Milling Cutter 90.0° 0.750 T12 3 Flute Coolant 0.22 Max DOC

Part Number: ING3040806 ISO: 12J1D-07010TSR02 ANSI:12J1D-07010TSR02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009516
Vendor: Sussex Tool and Supply
$425.60

Description

INGERSOLL 3040806 Parallelogram 90.0°, End Mill Thread On T12 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2200
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
