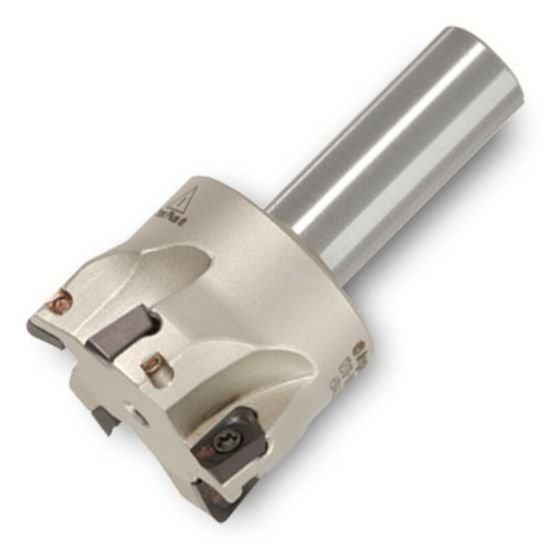

Picture of Ingersoll 12J1D-07007R8R01 Milling Cutter 90.0° 0.750 Cylindrical0.3750 5 Flute 0.22 Max DOC 1.750 OAL

Ingersoll 12J1D-07007R8R01 Milling Cutter 90.0° 0.750 Cylindrical0.3750 5 Flute 0.22 Max DOC 1.750 OAL

Part Number: ING3040876 ISO: 12J1D-07007R8R01 ANSI:12J1D-07007R8R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009518
Vendor: Sussex Tool and Supply
$447.07

Description

INGERSOLL 3040876 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.3750 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Inter/Extern External
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2200
Max Ramp Angle 2.60°
Materials & Finish
Tool Material Steel
