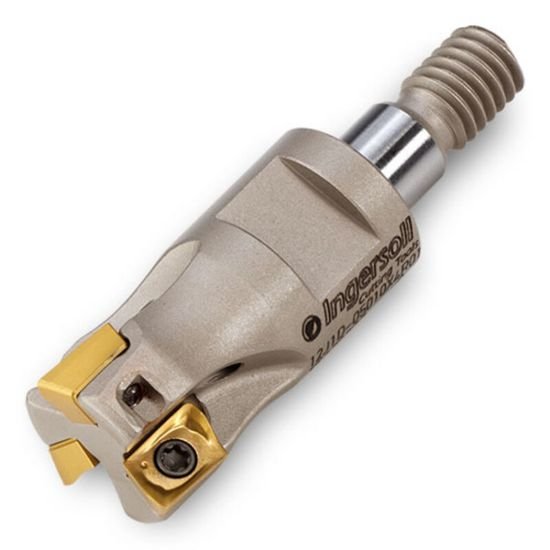

Picture of Ingersoll 12J1D-06010X5R01 Milling Cutter 90.0° 0.620 ScrewM08 4 Flute Coolant 0.22 Max DOC

Ingersoll 12J1D-06010X5R01 Milling Cutter 90.0° 0.620 ScrewM08 4 Flute Coolant 0.22 Max DOC

Part Number: ING3018978 ISO: 12J1D-06010X5R01 ANSI:12J1D-06010X5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008874
Vendor: Sussex Tool and Supply
$301.00
INGERSOLL 3018978 Parallelogram 90.0°, End Mill Thread On SCREWM08 Positive 0.6200 15.75MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M08
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 0.6200 15.75MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 0.6200 15.75MM
Depth Of Cut Max 0.2200
Cutting Edge Angle 90.0°
Max Ramp Angle 4.00°
