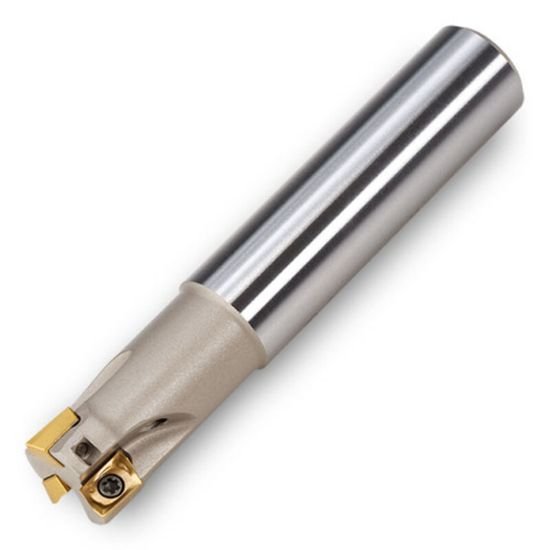

Picture of Ingersoll 12J1D-05011S4R01 Milling Cutter 90.0° 0.500 Cylindrical0.5000 2 Flute Coolant 0.22 Max DOC 3.000 OAL

Ingersoll 12J1D-05011S4R01 Milling Cutter 90.0° 0.500 Cylindrical0.5000 2 Flute Coolant 0.22 Max DOC 3.000 OAL

Part Number: ING3018963 ISO: 12J1D-05011S4R01 ANSI:12J1D-05011S4R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$291.20
SKU: 1008863

Description

INGERSOLL 3018963 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Max Ramp Angle 6.00°
Materials & Finish
Tool Material Steel
