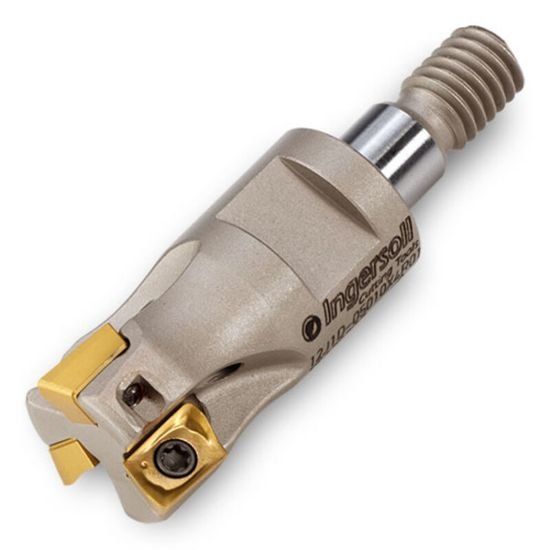

Picture of Ingersoll 12J1D-05010X4R01 Milling Cutter 90.0° 0.500 ScrewM06 3 Flute Coolant 0.22 Max DOC

Ingersoll 12J1D-05010X4R01 Milling Cutter 90.0° 0.500 ScrewM06 3 Flute Coolant 0.22 Max DOC

Part Number: ING3018977 ISO: 12J1D-05010X4R01 ANSI:12J1D-05010X4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008873
Vendor: Sussex Tool and Supply
$274.75
INGERSOLL 3018977 Parallelogram 90.0°, End Mill Thread On SCREWM06 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M06
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Cutting Edge Angle 90.0°
Max Ramp Angle 6.00°
