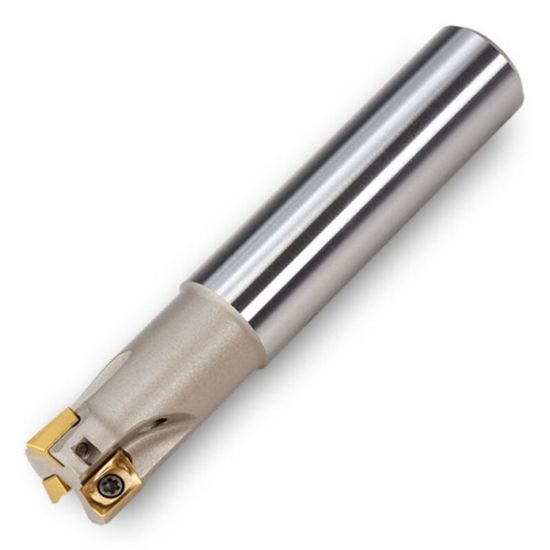

Picture of Ingersoll 12J1D-05009S4R01 Milling Cutter 90.0° 0.500 Cylindrical0.5000 3 Flute Coolant 0.22 Max DOC 2.750 OAL

Ingersoll 12J1D-05009S4R01 Milling Cutter 90.0° 0.500 Cylindrical0.5000 3 Flute Coolant 0.22 Max DOC 2.750 OAL

Part Number: ING3018964 ISO: 12J1D-05009S4R01 ANSI:12J1D-05009S4R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$297.73
SKU: 1008864

Description

INGERSOLL 3018964 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Max Ramp Angle 6.00°
Materials & Finish
Tool Material Steel
