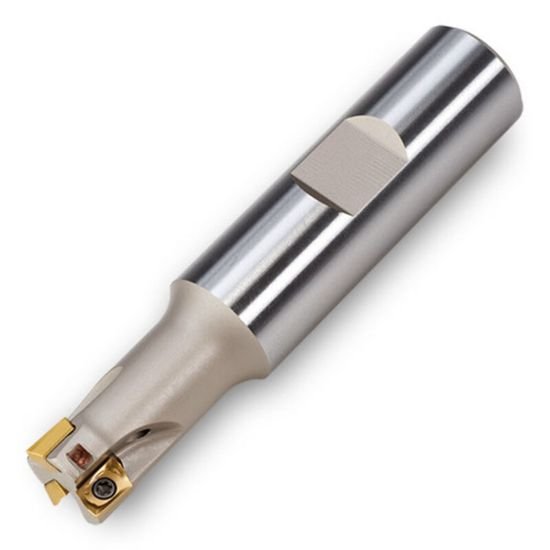

Picture of Ingersoll 12J1D-0500979R01 Milling Cutter 90.0° 0.500 Cylindrical0.6250 3 Flute 0.22 Max DOC 3.000 OAL

Ingersoll 12J1D-0500979R01 Milling Cutter 90.0° 0.500 Cylindrical0.6250 3 Flute 0.22 Max DOC 3.000 OAL

Part Number: ING3018961 ISO: 12J1D-0500979R01 ANSI:12J1D-0500979R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$297.73
SKU: 1008861

Description

INGERSOLL 3018961 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.6250 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Max Ramp Angle 6.00°
Materials & Finish
Tool Material Steel
