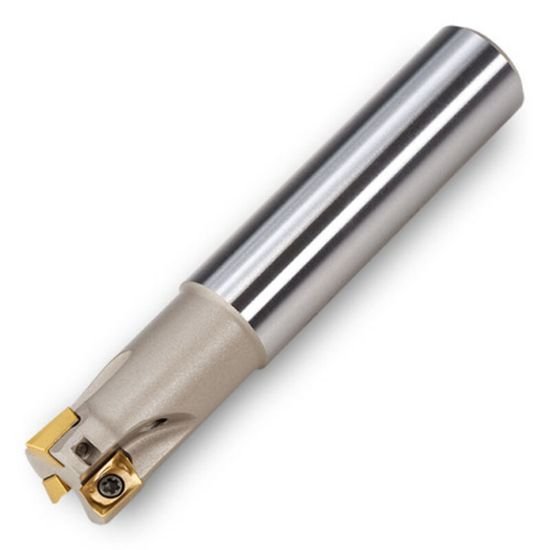

Picture of Ingersoll 12J1D-04009S4R01 Milling Cutter 90.0° 0.490 Cylindrical0.5000 2 Flute Coolant 0.22 Max DOC 2.750 OAL

Ingersoll 12J1D-04009S4R01 Milling Cutter 90.0° 0.490 Cylindrical0.5000 2 Flute Coolant 0.22 Max DOC 2.750 OAL

Part Number: ING3018962 ISO: 12J1D-04009S4R01 ANSI:12J1D-04009S4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008862
Vendor: Sussex Tool and Supply
$273.00
INGERSOLL 3018962 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.4900 12.45MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.7500 69.85MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.4900 12.45MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 0.4900 12.45MM
Depth Of Cut Max 0.2200
Cutting Edge Angle 90.0°
Max Ramp Angle 6.00°
