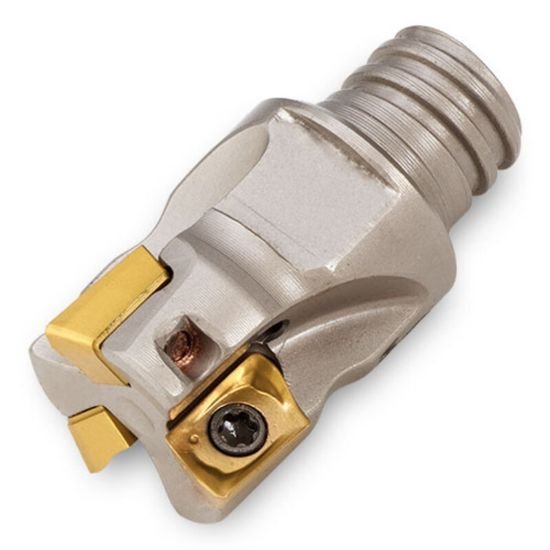

Picture of Ingersoll 12J1D-03006T6R01 Milling Cutter 90.0° 0.375 T06 2 Flute Coolant 0.22 Max DOC

Ingersoll 12J1D-03006T6R01 Milling Cutter 90.0° 0.375 T06 2 Flute Coolant 0.22 Max DOC

Part Number: ING3040802 ISO: 12J1D-03006T6R01 ANSI:12J1D-03006T6R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$279.07
SKU: 1009512

Description

INGERSOLL 3040802 Parallelogram 90.0°, End Mill Thread On T06 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Depth Of Cut Max 0.2200
Max Ramp Angle 9.60°
Materials & Finish
Tool Material Steel
