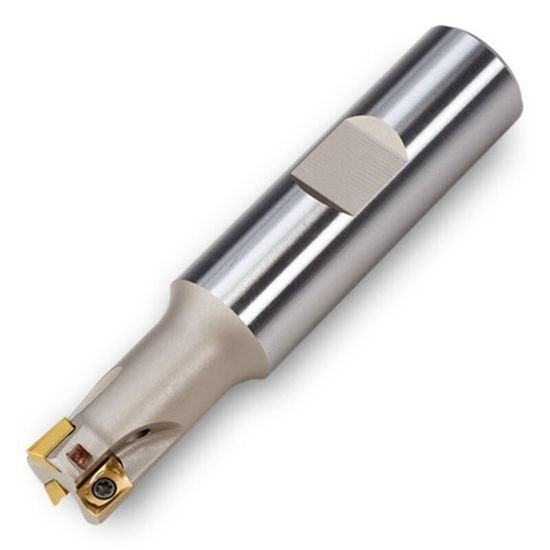

Picture of Ingersoll 12J1D-0300587R01 Milling Cutter 90.0° 0.375 Cylindrical0.5000 2 Flute 0.22 Max DOC 2.500 OAL

Ingersoll 12J1D-0300587R01 Milling Cutter 90.0° 0.375 Cylindrical0.5000 2 Flute 0.22 Max DOC 2.500 OAL

Part Number: ING3018959 ISO: 12J1D-0300587R01 ANSI:12J1D-0300587R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$279.07
SKU: 1008859

Description

INGERSOLL 3018959 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Depth Of Cut Max 0.2200
Max Ramp Angle 9.60°
Materials & Finish
Tool Material Steel
