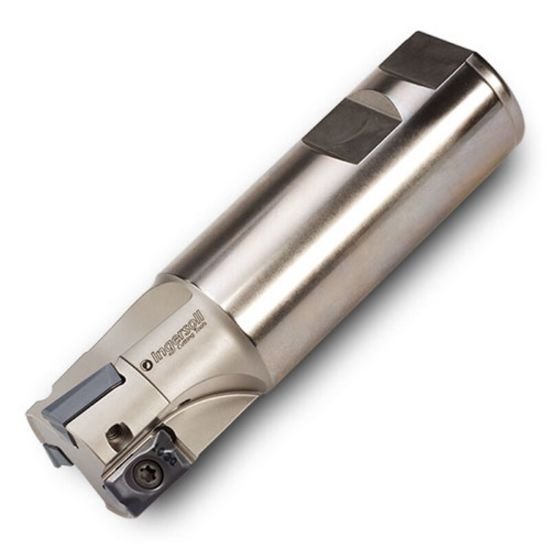

Picture of Ingersoll 12J1B-1005780R02 Milling Cutter 90.0° 1.000 Cylindrical1.0000 2 Flute Coolant 0.6 Max DOC 8.000 OAL

Ingersoll 12J1B-1005780R02 Milling Cutter 90.0° 1.000 Cylindrical1.0000 2 Flute Coolant 0.6 Max DOC 8.000 OAL

Part Number: ING3004405 ISO: 12J1B-1005780R02 ANSI:12J1B-1005780R02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008697
Vendor: Sussex Tool and Supply
$511.47

Description

INGERSOLL 3004405 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Overall Length 8.0000 203.20MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.6000
Max Ramp Angle 5.40°
Materials & Finish
Tool Material Steel
