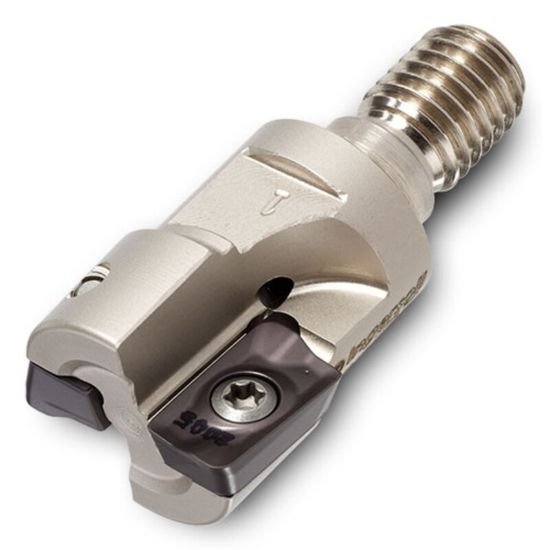

Picture of Ingersoll 12J1B-10012X7R01 Milling Cutter 90.0° 1.000 ScrewM12 2 Flute Coolant 0.6 Max DOC

Ingersoll 12J1B-10012X7R01 Milling Cutter 90.0° 1.000 ScrewM12 2 Flute Coolant 0.6 Max DOC

Part Number: ING3016702 ISO: 12J1B-10012X7R01 ANSI:12J1B-10012X7R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$368.67
SKU: 1008777

Description

INGERSOLL 3016702 Parallelogram 90.0°, End Mill Thread On SCREWM12 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.6000
Max Ramp Angle 5.40°
Materials & Finish
Tool Material Steel
