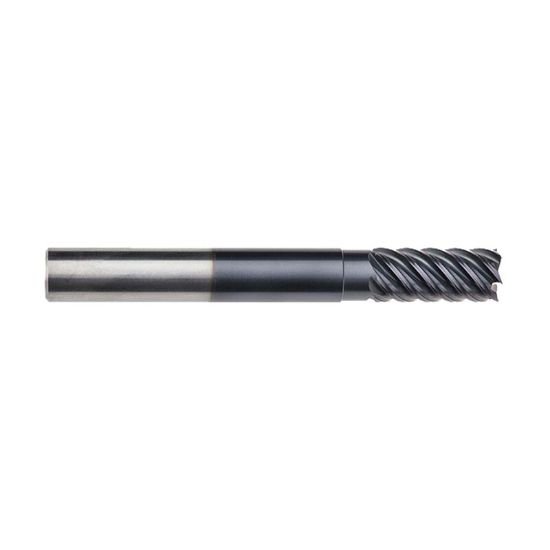

Picture of Imco 69540 Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Omega-6 Mill

Imco 69540 Dia 3/4 SH 0.7500 LOC 1.6250 OAL5.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm Omega-6 Mill

Part Number: IMC69540 0.750 x 0.750 x 1.625 x 5.000 LBS = 2.875
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234676
Vendor: Sussex Tool and Supply
$382.81

Description

IMCO High Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 6 Single End Omega-6 Mill Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Neck Length 2.8750 73.03MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 50
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
