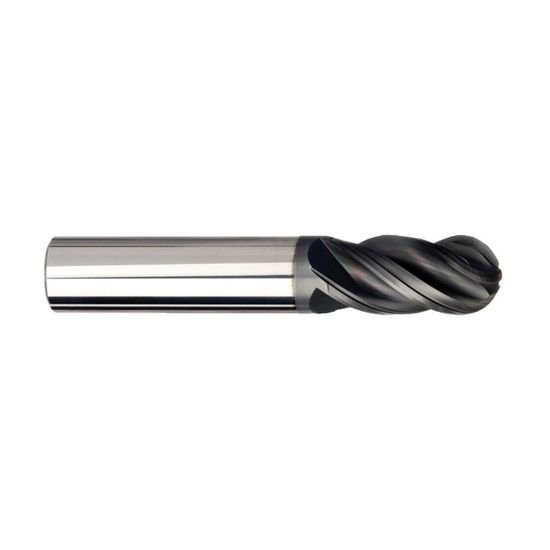

Imco 68018 Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Standard Flute Variable Helix Carbide AlCrN Single End Ball NoseBall Pow-R-Feed Mill

Part Number: IMC68018 0.787 x 0.787 x 1.496 x 4.095

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1234245
$446.10
IMCO Variable Helix End Mill Carbide AlCrN Ball Nose Ball Standard Flute Flutes 4 Single End Pow-R-Feed Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating ALCrN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.0945 104.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.4961 38.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
