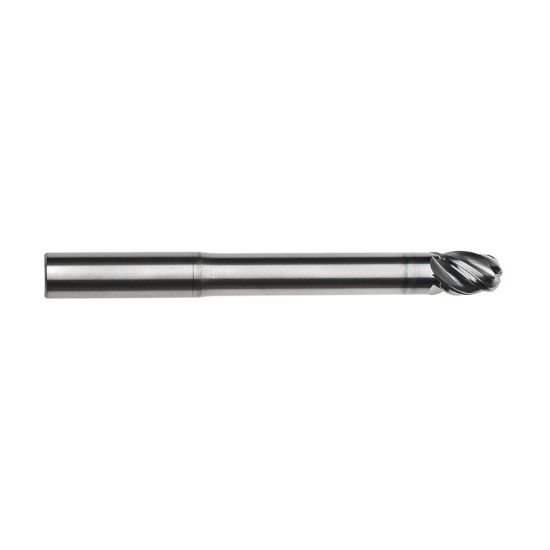

Imco 67837 Dia 1 SH 1.00 LOC 1.2500 OAL6.00 End Mill Standard Flute Variable Helix Carbide AlCrN Single End Ball NoseBall Pow-R-Feed Mill

Part Number: IMC67837 1.000 x 1.000 x 1.250 x 6.000 LBS = 3.625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1234173
$764.94
IMCO Variable Helix End Mill Carbide AlCrN Ball Nose Ball Standard Flute Flutes 4 Single End Pow-R-Feed Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating ALCrN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 3.6250 92.08MM
