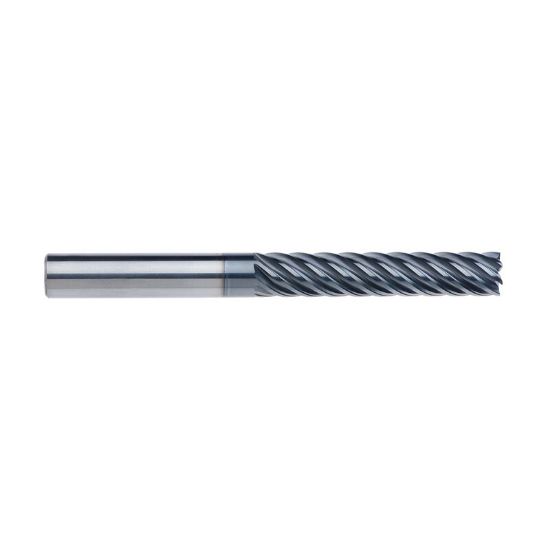

IMCO 66265 DIA 3/4 SH 0.7500 LOC 4.1250 OAL7.00 End Mill Standard Flute Standard Helix Carbide Single End Corner Radius0.1250 3.18MM enDURO Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC66265
Delivery date: 3-5 days
$643.82
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10I, Material#3, Material#10, Material#8, Material#10T
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Performance Rating High Performance
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Sold by Pieces 1
Shipping State Ohio
Package Size 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <42HRC Steel, High Temp, Inconel, Stainless Steel, Titanium
Overall Len 7.0000 177.80MM
Length Type Long
Helix Angle 40°
Corner Radius 0.1250 3.18MM
Length Of Cut 4.1250 104.78MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 4.125 x 7.000
Machine Side CYLINDRICAL0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 7
Single/Double End Single End
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
