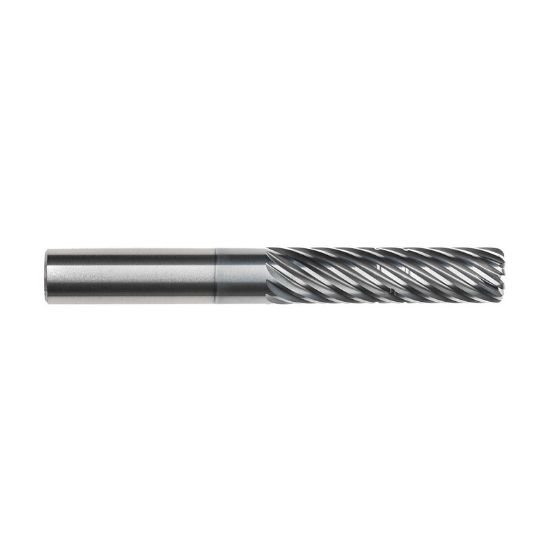

Imco 64268 Dia 1-1/4 SH 1.2500 LOC 3.1250 OAL6.50 End Mill Standard Flute Standard Helix Carbide AlCrN Single End Corner Radius0.0300 0.76mm Pow-R-Path Mill

Part Number: IMC64268 1.250 x 1.250 x 3.125 x 6.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1232876
$1,127.36

Description

IMCO Standard Helix End Mill Carbide AlCrN Corner Radius 0.0300 0.76MM Standard Flute Flutes 11 Single End Pow-R-Path Mill Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.5000 165.10MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 11
Tool Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 34
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
